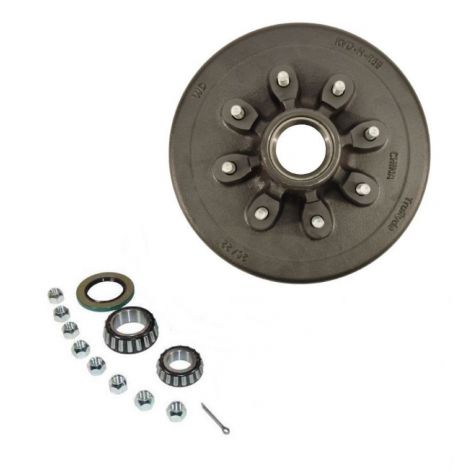

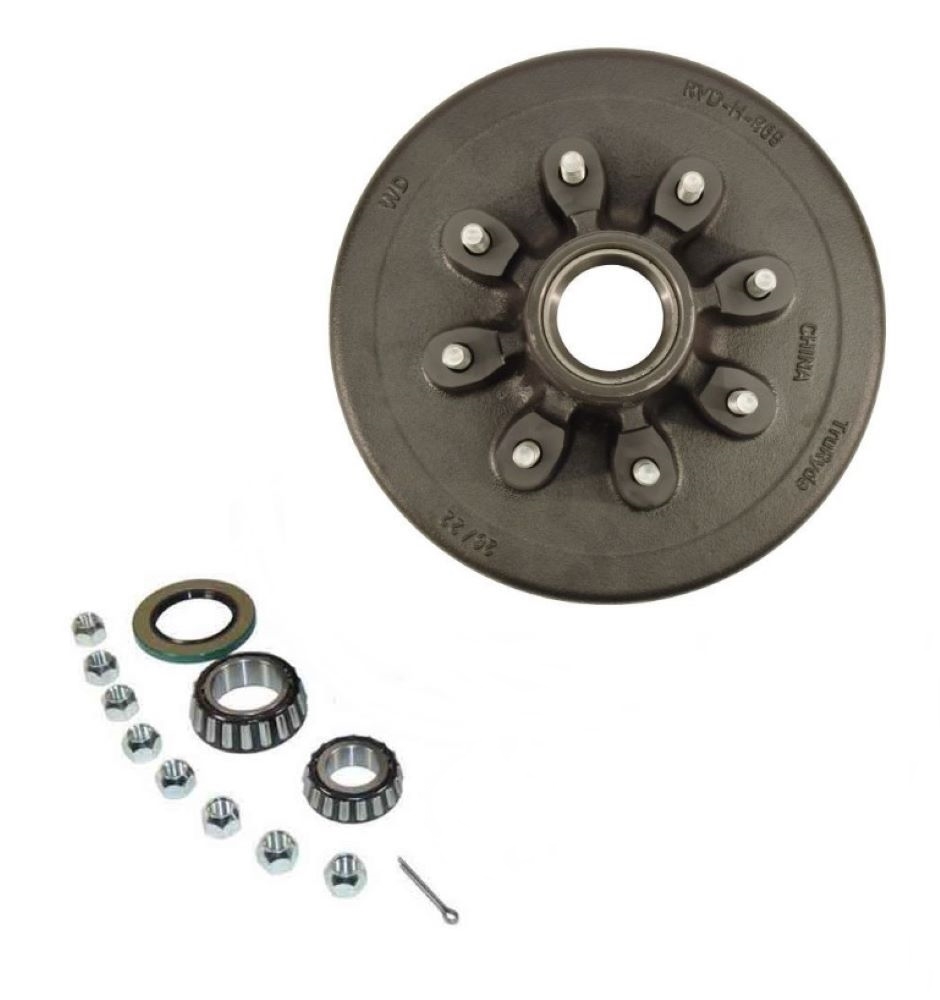

Trailer Hub/Drum Assembly With Bearings, 8 On 6-1/2" Bolt Circle, 3,500 Lb. Capacity For 1-3/4" To 1-1/4" Tapered Spindle W/ EZ Lube Cap & Plug (HD-1208-02-EZ)
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719
Trailer Hub and Drum for 1-3/4" To 1-1/4" Tapered Spindles for a 5,200lb to 6,000lb Axle. For use with 12" x 2" electric or hydraulic brakes.
Sold as Single with a 3,500 lb. Capacity per Hub.
The center hole (pilot hole) in the wheel needs to be 4-1/2" in diameter to use this hub/drum.
Complete Assembly with Bearings, Seal, Dust Cap, Cotter Pin, and Lug Nuts.
Product Details
12" Hub and Drum has 8 on 6-1/2" bolt circle for 1-3/4" To 1-1/4" tapered spindle for a 5,200lb to 6,000lb axle 3,500 lb. capacity hub. Includes pressed in bearing races with a pilot diameter is 4-1/2". Lugs are 1/2"-20.
2-1/2" deep inside for use with 12" x 2" electric or hydraulic brakes.
The center hole (pilot hole) in the wheel needs to be 4-1/2" in diameter to use this hub/drum.
Hub assembly includes:
L-25580 Inner Bearing.
L-14125A Outer Bearing.
SL-213 (2.125" I.D.) Grease Seal.
SCP-100 Cotter Pin.
1/2"-20 STN-506 Lug Nuts (8)
EZ Lube Dust Cover & Cap.
NOTE: This kit does not include the castle nut. You must use your existing nut for installation.
Specifications
| Brand | TRP |
|---|
