Trailer Hub Drum Assembly 8 On 6-1/2" Bolt Circle, 3,500lb Capacity For 1-3/4" To 1-1/4" Tapered Spindle W/ 2.25 I.D. Grease Seal (HD-1208-25-A)
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719
Trailer Hub and Drum for 1-3/4" To 1-1/4" Tapered Spindles for a 5,200lb to 6,000lb Axle. For use with 12" x 2" electric or hydraulic brakes. Sold as Single with a 3,500 lb. Capacity per Hub. Complete Assembly with Bearings, Seal, Dust Cap, Cotter Pin, and Lug Nuts.
Product Details
12" Hub and Drum has 8 on 6-1/2" bolt circle for 1-3/4" To 1-1/4" tapered spindle for a 5,200lb to 6,000lb axle. 3,500 lb. capacity hub. Includes pressed in bearing races with a pilot diameter is 4-1/2", flange diameter is 8-1/2". Lugs are 1/2"-20.
2-1/2" deep inside for use with 12" x 2" electric or hydraulic brakes.

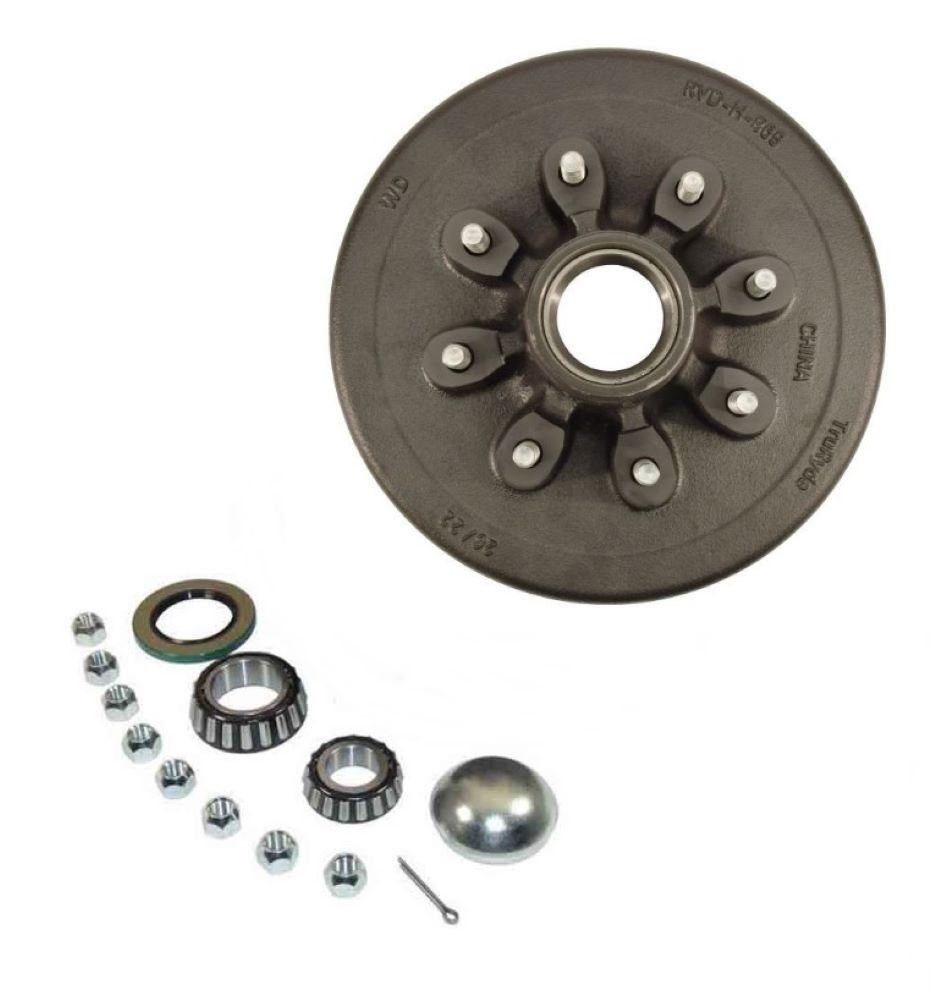

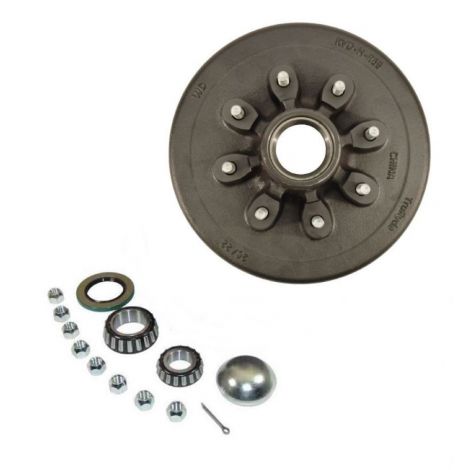

Hub assembly includes:
L-25580 Inner Bearing,
L-14125A Outer Bearing
SL-225 (2.25" I.D.) Grease Seal
SCP-100 Cotter Pin
STN-506 (1/2"-20) Lug Nuts (8)
DC-1605 Dust Cover
NOTE: This kit does not include the castle nut. You must use your existing nut for installation.
Specifications
Brand | TRP |
---|
