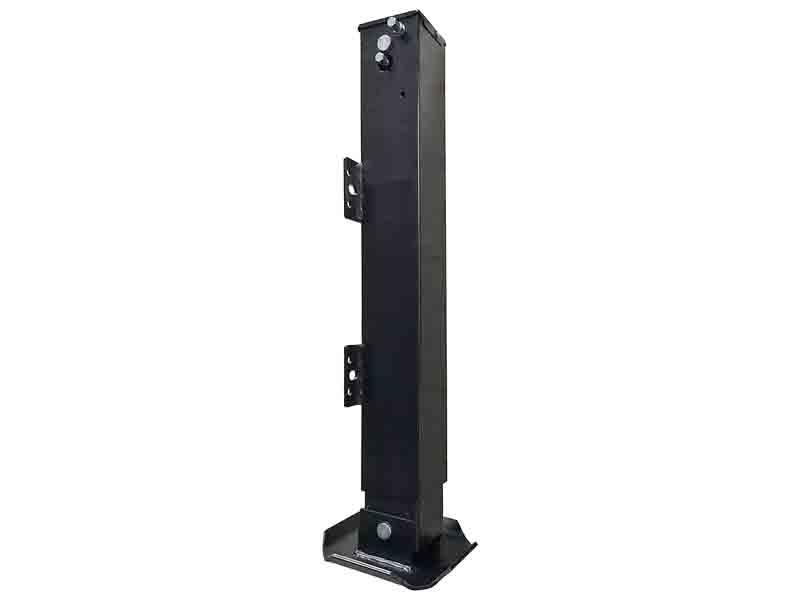

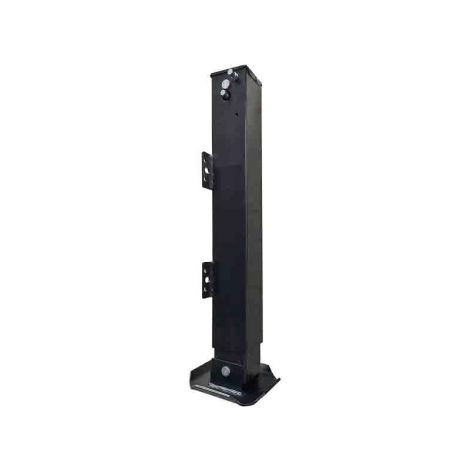

Ram Hydraulic Square Tube Jack - 15K - Streetside (Left)
SKU
HJ-15000-LEG-2
List Price:
$547.37
Ram Hydraulic Square Tube Jack - 15K - Streetside (Left)
$
367.29
In-Stock
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719
Hydraulic Square Tube Bolt On Jack - 15K - Streetside (Left)
Ideal for use with commercial, construction and dump trailers.
Product Details
Hydraulic Square Tube Jack - 15K - Left Side Only
Ideal for use with commercial, construction and dump trailers. Also works well where outrigger/stabilization is needed. Provides 15,000 lbs. support capacity, 12,000 lbs. lift capacity.
Hydraulic square tube jack legs are sold separately. Hydraulic power unit and hydraulic lines must also be purchased separately.
- 15,000 lbs. support capacity, 12,000 lbs. lift capacity
- Pivoting large foot pad works well on uneven surfaces
- Durable black powder coat finish
- 59" extended height, 34.8" retracted height, 24.2" travel distance
- Two 7.5" x 4" mounting brackets for easy bolt-on application
- Works with hydraulic pump units up to 3,200 psi extension, 1,500 psi retraction working pressure
- Hydraulic pump unit and hydraulic lines sold separately
Specifications
| Brand | RAM |
|---|---|
| Jack Type | Hydraulic |
| Extended B | 59 inch |
| Finish | Black Powder Coat |
| Lift Capacity | 12,000 lbs. |
| Mounting Style | Bolt-On |
| Outer Tube | 4-1/2 inch |
| Retracted A | 34.8 inch |
| Support Capacity | 15,000 lbs. |
| Travel | 24.2 inch |
| Voltage | 12V DC |
