Trailer Hitch Class III, 2 in. Receiver fits Select Chevrolet Equinox and GMC Terrain (Except Diesel & EV Models)

Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719

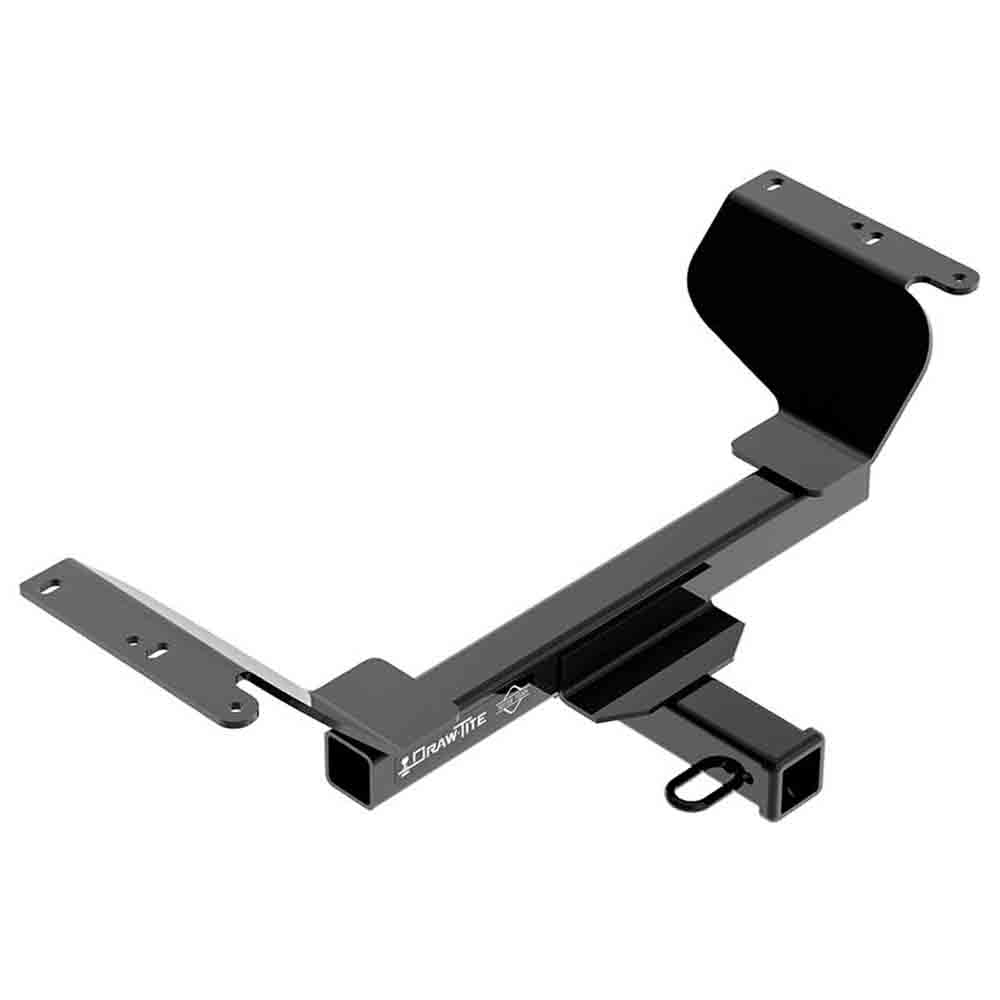

Draw-Tite 76419 Class III Custom Fit Trailer Hitch Receiver Fit Select GMC Terrain Models Except Diesel & EV Models and Chevrolet Equinox All Models Except 1.6L Diesel & EV Models
** Will not fit Equinox EV Models **
Product Details
Class III/IV hitches are Weight Carrying (WC) and also are Weight Distributing (WD) hitches depending on the vehicle and hitch specifications. Not all Class III/IV hitches are rated to do both. Please see the Specifications tab above for the weight carrying and weight distributing ratings (if applicable) for this hitch.
In order to use a hitch to its maximum weight carrying capacity, a ball mount and hitch ball of the same rating or higher is required. To use the weight distribution side of the hitch, a weight distribution system is required. All of these items are sold separately. Class III/IV hitches attach primarily to the vehicle frame. Always consult your owner's manual to determine your vehicle's maximum towing capacity.
- Uses all existing holes. No Drilling required.
- Exhaust must be temporarily lowered for installation
Optional Accessories
- Custom Fit T-Connector for 2018-2021 Chevrolet Equinox (Except Premier Models) Wiring Light Kit P/N 118750
- Custom Fit T-Connector for 2018-2021 Chevrolet Equinox (Premier Models) Wiring Light Kit P/N 118759
- Custom Fit Replacement T-Connector for 2018-2025 Chevrolet Equinox and 2018-2024 GMC Terrain (Models with tow prep package) Wiring Light Kit P/N 118285
- Custom Fit T-Connector for 2018-2024 GMC Terrain (Models without Relay Provisions) Light Kit P/N 118764
- ZCI Zero Contact Universal Modulite Wiring Kit P/N 119251
Click Here for a link to our Ball Mount Selection
WARNING: Cancer and Reproductive Harm. For more information, go to www.P65Warnings.ca.gov.
Specifications
Brand | Draw-Tite |
---|---|
Receiver Size | 2 inch |
Gross Towing Weight (WC) | 4,500 lbs. |
Tongue Weight | 675 lbs. |
Dist Gross Trailer Weight (WD) | 4,500 lbs. |
Dist Tongue Weight | 675 lbs. |
Hitch Class | Class III |
Finish | Black Powder Coat |
Installation Time | 35 minutes |
Warranty | Limited Lifetime Warranty |
Instructions
Compatibility
Year | Make | Model | Category | Description |
---|---|---|---|---|
2025 | Chevrolet | Equinox | Rear Mounted Receivers | All, Except 1.6L Diesel |
2024 | Chevrolet | Equinox | Rear Mounted Receivers | All, Except 1.6L Diesel |
2024 | GMC | Terrain | Rear Mounted Receivers | All, Except Diesel |
2023 | Chevrolet | Equinox | Rear Mounted Receivers | All, Except 1.6L Diesel |
2023 | GMC | Terrain | Rear Mounted Receivers | All, Except Diesel |
2022 | Chevrolet | Equinox | Rear Mounted Receivers | All, Except 1.6L Diesel |
2022 | GMC | Terrain | Rear Mounted Receivers | All, Except Diesel |
2021 | Chevrolet | Equinox | Rear Mounted Receivers | All, Except 1.6L Diesel |
2021 | GMC | Terrain | Rear Mounted Receivers | All, Except Diesel |
2020 | Chevrolet | Equinox | Rear Mounted Receivers | All, Except 1.6L Diesel |
2020 | GMC | Terrain | Rear Mounted Receivers | All, Except Diesel |
2019 | Chevrolet | Equinox | Rear Mounted Receivers | All, Except 1.6L Diesel |
2019 | GMC | Terrain | Rear Mounted Receivers | All, Except Diesel |
2018 | Chevrolet | Equinox | Rear Mounted Receivers | All, Except 1.6L Diesel |
2018 | GMC | Terrain | Rear Mounted Receivers | All, Except Diesel |
