Draw-Tite Class V 2-1/2 inch Trailer Hitch Receiver fit 2003-2024 Ram 2500 & 3500 Models
Please Note: This is a custom fit product. Please verify fit before ordering. Fit Finder
Have a Question ? Talk to a specialist- Live chat or call 877-509-0719

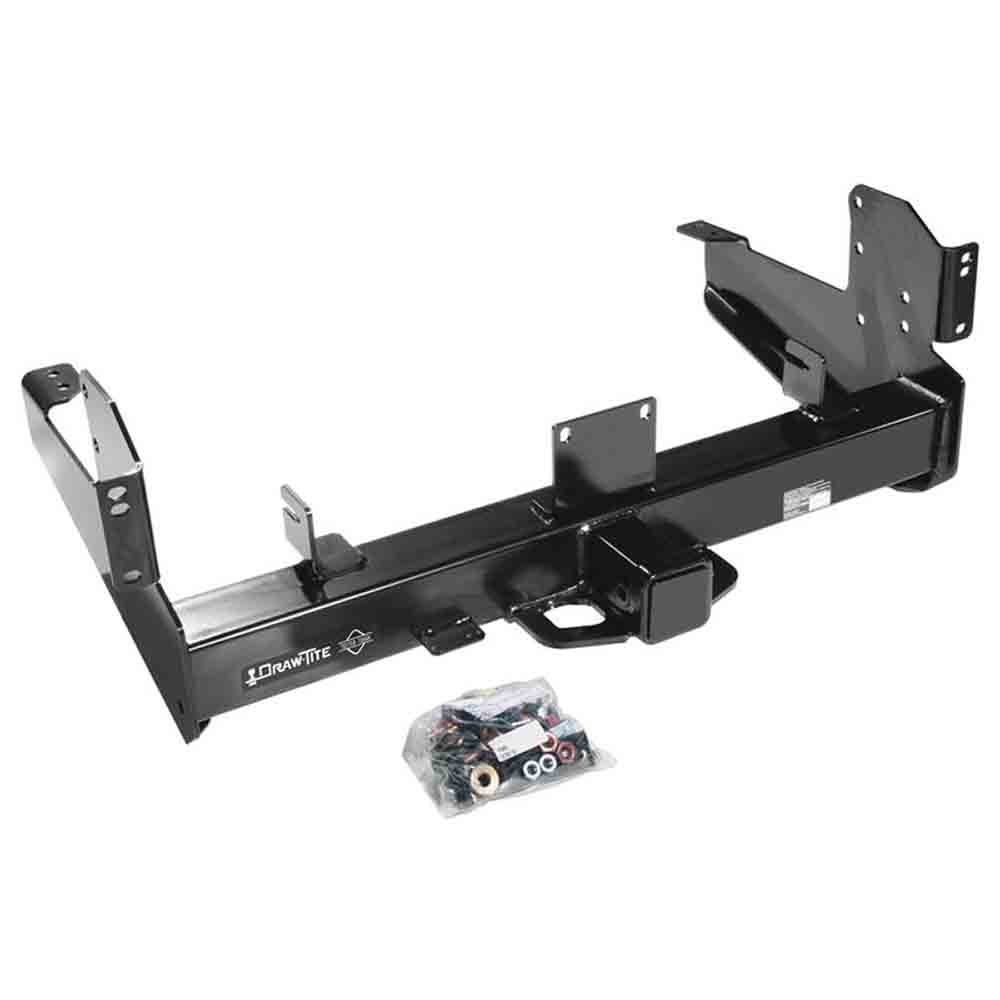

Draw-Tite 45509 Class V 2-1/2 inch Trailer Hitch Receiver Fits
- 2011-2024 Ram 2500 & 3500 Models
- 2003-2010 Dodge Ram 2500 & 3500 Models
2011 and newer models - Rear spring hanger brackets must be mounted above the frame or hitch cannot be installed.
There have been isolated cases of trucks with optional bottom of rear frame spring shackle mounts. These bottom of frame shackle mounts will not allow the hitch to be installed. Inspect truck for these shackles before ordering hitch. See diagram top left corner of sheet 3 of the 45509 instructions, this diagram shows a top of frame mounted spring shackle that is required for hitch to install.
Product Details
Class V hitches are very similar to Class III & IV hitches except for the weight ratings. Class V hitches are Weight Carrying (WC) and Weight Distributing (WD) hitches. Class V hitches used as Weight Carrying are rated up to 20,000 lbs. Gross Trailer Weight (WCGTW) with a maximum trailer Tongue Weight (WCTW) of 2,700 lbs.
Hitches that are used for Weight Distributing are rated up to 20,000 lbs. Gross Trailer Weight (WDGTW) with a maximum trailer Tongue Weight (WDTW) of 2,700 lbs. Please see the Specification tab above for the weight ratings of this hitch.
This style of hitch uses a 2-1/2" square receiver opening. The use of a ball mount and hitch ball of the same rating or higher is required. To use the weight distribution side of the hitch a weight distribution system is required. Class V hitches attach to the vehicle frame only.
2011 and newer models - Rear spring hanger brackets must be mounted above the frame or hitch cannot be installed.
Always consult your owner's manual for vehicle rating.
- Requires temporary removal of bumper during installation
- Includes 2 & 4 WD models with heavy duty suspension. 3/4 and 1 ton vehicles only.
- Will not fit models with 34 inch wide frames.
- Hitch crosstube is visible beneath bumper
- Requires removal of factory hitch if equipped
- With this hitch installed the step bumper is no longer able to be used as a towing point.
Optional Accessories
- ZCI Zero Contact Universal Modulite KIt Wiring Light Kit P/N 119251
- Hardwire ModuLite HD Protector Trailer Light Power Module With Wiring Kit Multi-fit Wiring Harness P/N 119148
- Hardwire Multi-Fit Tail Light Wiring Harness P/N 20252
Click Here for a link to our complete Ball Mount Selection
Specifications
| Brand | Draw-Tite |
|---|---|
| Receiver Size | 2-1/2 inch |
| Gross Towing Weight (WC) | 18,000 lbs. |
| Tongue Weight | 2,000 lbs. |
| Dist Gross Trailer Weight (WD) | 18,000 lbs. |
| Dist Tongue Weight | 2,500 lbs. |
| Hitch Class | Class V |
| Finish | Black Powder Coat |
| Installation Time | 95 minutes |
| Warranty | Limited Lifetime Warranty |
Instructions
Compatibility
| Year | Make | Model | Category | Description |
|---|---|---|---|---|
| 2024 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2024 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2023 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2023 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2022 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2022 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2021 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2021 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2020 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2020 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2019 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2019 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2018 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2018 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2017 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2017 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2016 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2016 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2015 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2015 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2014 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2014 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2013 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2013 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2012 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2012 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2011 | Ram | 2500 | Rear Mounted Receivers | All Models |
| 2011 | Ram | 3500 | Rear Mounted Receivers | All Models |
| 2010 | Dodge | Ram 2500 | Rear Mounted Receivers | All Models |
| 2010 | Dodge | Ram 3500 | Rear Mounted Receivers | All Models |
| 2009 | Dodge | Ram 2500 | Rear Mounted Receivers | All Models |
| 2009 | Dodge | Ram 3500 | Rear Mounted Receivers | All Models |
| 2008 | Dodge | Ram 2500 | Rear Mounted Receivers | All Models |
| 2008 | Dodge | Ram 3500 | Rear Mounted Receivers | All Models |
| 2007 | Dodge | Ram 2500 | Rear Mounted Receivers | All Models |
| 2007 | Dodge | Ram 3500 | Rear Mounted Receivers | All Models |
| 2006 | Dodge | Ram 2500 | Rear Mounted Receivers | All Models |
| 2006 | Dodge | Ram 3500 | Rear Mounted Receivers | All Models |
| 2005 | Dodge | Ram 2500 | Rear Mounted Receivers | All Models |
| 2005 | Dodge | Ram 3500 | Rear Mounted Receivers | All Models |
| 2004 | Dodge | Ram 2500 | Rear Mounted Receivers | All Models |
| 2004 | Dodge | Ram 3500 | Rear Mounted Receivers | All Models |
| 2003 | Dodge | Ram 2500 | Rear Mounted Receivers | All Models |
| 2003 | Dodge | Ram 3500 | Rear Mounted Receivers | All Models |
