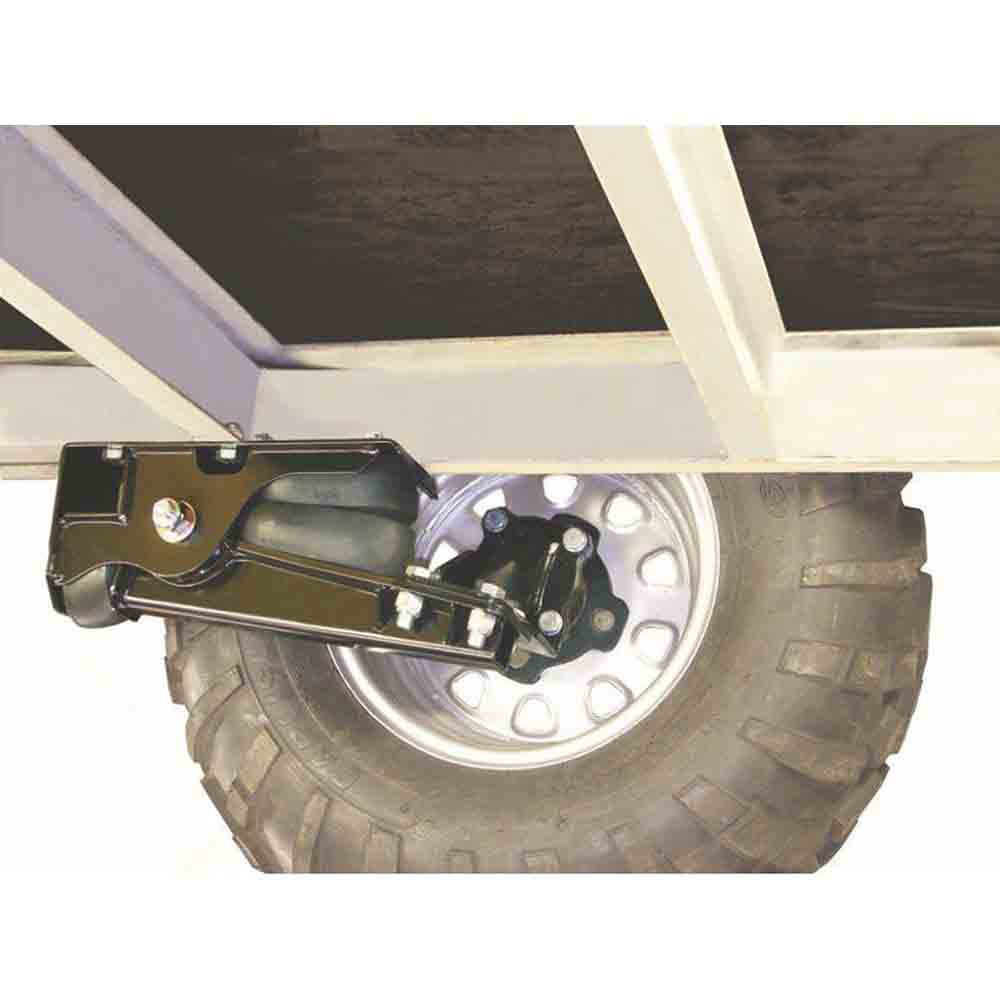

Timbren Axle-Less Suspension - 5,200 lb Capacity/Pair - 1-3/4" to 1-1/4" Tapered Spindle

The ground breaking axle-less suspension can be used on both off-road and on-road trailers. Timbrens' unique rubber spring technology allows for an incredibly smooth and quiet ride. Furthermore, a second smaller spring acts as a rebound spring, so whether the trailer is loaded or empty there is always tension on the suspension, eliminating rattling and trailer bounce.

This kit is rated for 5,200 pound capacity for the pair and includes brake mounting flanges. Timbren part number - #ASR5200S01

• Easy bolt-on installation eliminates welding and makes it possible to mount to aluminum frames
• Requires no thru axle - improved ground clearance and low deck height
• Fits all frame widths
• Factory built-in camber and tow-in ensures trailer will always track well
• Easy retrofit solution for trailers with broken or bent spindles and axles
• Black powder coat finish
• 1-3/4 inch to 1-1/4 inch tapered E-Z lube spindles
• 2.25 seal ride surface
• Includes brake mounting flanges
